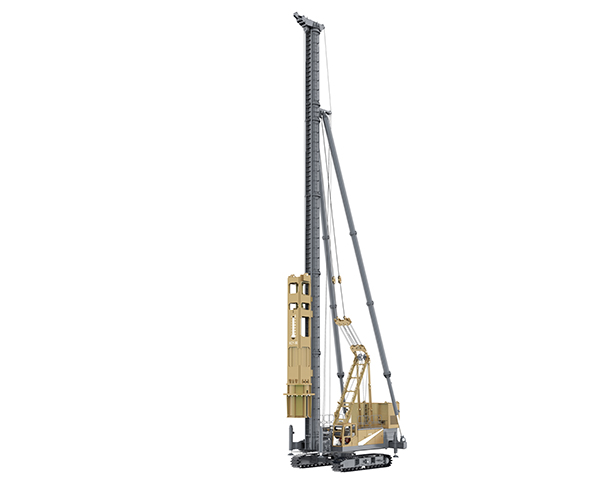

Features
1.Multi
functional: It can be equipped with working devices such as long spiral,
hydraulic hammer/down the hole hammer, single axis/double axis/multi axis
mixer, etc., to meet the construction needs of different pile types, geology
and environments.
2.Strong
construction capability：The
column height is 42 meters, the drilling depth can reach 36 meters, and the
drilling diameter is 1.2 meters, which meets the needs of most pile foundation
construction.
3.High
configuration ensures overall stability: The hydraulic system adopts products
from top domestic suppliers, with front and rear four leg oil cylinder design,
optimized overall structural matching, and a ground pressure ratio of 194kPa,
resulting in high overall stability.
4.High
construction efficiency: Matched with Dongfeng Cummins 194KW engine to ensure
strong power output during construction.
5.Convenient and
flexible transition, low cost: The tracked vehicle allows for flexible walking
and transportation, resulting in low transition costs.
Technical data
|
Item
|
Unit
|
Data
|
|
| Column | Height |
m
|
42
|
| Diameter of cylinder |
mm
|
Φ914
|
|
| Guideway |
mm
|
Φ102×600
|
|
| Max.pulling force |
t
|
70
|
|
|
Angle adjustment in left and right directions |
°
|
±1.5
|
|
|
Adjustment travel in front and rear directions |
mm
|
200
|
|
|
Diagonal support cylinder stroke |
mm
|
2800
|
|
| Main winch |
Max.pulling force of single rope |
t
|
12
|
| Max.speed of single rope |
m/min
|
41-58
|
|
| Diameter of wire rope |
mm
|
22
|
|
| Length of wire rope |
m
|
620
|
|
| Aux.winch |
Max.pulling force of single rope |
t
|
12
|
| Max.speed of single rope |
m/min
|
41-58
|
|
| Diameter of wire rope |
mm
|
22
|
|
| Length of wire rope |
m
|
580
|
|
| Third winch |
Max.pulling force of single rope |
t
|
14
|
| Max.speed of single rope |
m/min
|
38-50
|
|
| Diameter of wire rope |
mm
|
22
|
|
| Length of wire rope |
m
|
170
|
|
| Lifting winch |
Max.pulling force of single rope |
t
|
14
|
| Max.speed of single rope |
m/min
|
32-43
|
|
| Diameter of wire rope |
mm
|
22
|
|
| Length of wire rope |
m
|
240
|
|
| Swing speed |
rpm
|
2.7
|
|
| Engine | Brand |
|
Dongfeng Cummins
|
| Model |
|
L9CS4-264
|
|
| Emission standards |
|
China IV standerd
|
|
| Power |
kW
|
194
|
|
| Rated speed |
rpm
|
2000
|
|
| Fuel tank capacity |
L
|
450
|
|
| Track | Width: expand/collapse |
mm
|
4900/3400
|
| Width of track plate |
mm
|
850
|
|
| Ground length |
mm
|
5370
|
|
| Travel speed |
km/hr
|
0.85
|
|
| Grade ability |
|
30%
|
|
| Average ground pressure |
kPa
|
177
|
|
| Max.traveling weight |
t
|
165
|
|
| Counterweight |
t
|
22
|
|
| Main machine weight(without column、counterweight) |
t
|
62
|
|
