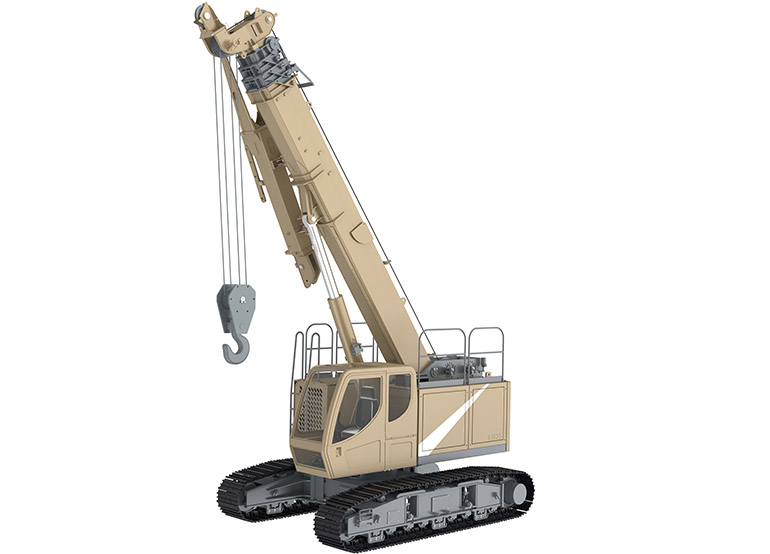

Features
1. Strong
adaptability to the site: product operating radius: min 2m, max 22m.
2. High homework
efficiency: the main hoist speed is 155m/min, the boom extension time is 68
seconds, and the speed is more suitable for high-frequency construction
operations.
3. High
stability: equipped with Dongfeng Cummins 132KW engine.
4. Strong
lifting capacity: the main boom is 7~24.5 meters long, and the jib is 4.15~7.8
meters long. The effective combination of the main boom and jib can meet
various operational requirements within the range of boom length.
5. Mobile and
flexible transport convenience: the whole machine weighs 30 tons, with a
transportation width of 2.5 meters and a height of 2.75 meters. It is mobile
and flexible, with barrier free transport.
Technical data
| Item | Unit | Data | ||
| Main boom | Max lifting capacity | t.m | 25×2 | |
| Min length of main boom | m | 7 | ||
| Max length of main boom | m | 24.5 | ||
| Main boom derricking angle | ° | 10-80 | ||
| Fixed jib | Fixed jib length | m | 4.15-7.8 | |
| Max length of main boom and fixed jib | m | 24.5+7.8 | ||
| Working speed | Wire rope speed | Hoist | m/min | 155(third layer） |
| Lower | m/min | 155(third layer） | ||
| Full extension/retraction speed of boom | S | 99/76 | ||
| Full lift/ drop speed of boom | S | 30/23 | ||
| Slew speed | r/min | 0-2.6 | ||
| Travel speed | km/h | 2 | ||
| Parts of line | 8 | |||
| Single line pull | t | 3.4 | ||
| Grade ability（With basic boom and cabin on the rear side） | % | 40 | ||
| Rated power output/ Rotation speed of diesel engine | KW/r/min | QSB5.9-C180-33 132/2200 | ||
| Mass of whole crane | t | 28.7 | ||
| ransport size of basic machine | mm | 9090×2490×2750 | ||
| Ground pressure（With basic boom） | MPa | 0.06 | ||
