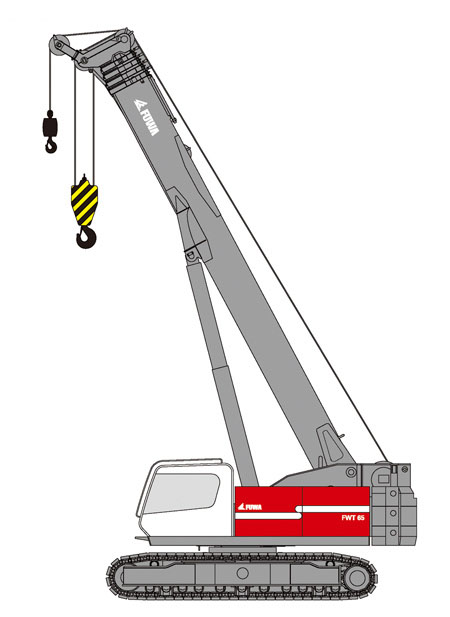

With Telescopic Boom

FWT65

Features:
1.Unique side-by-side winch configuration allowing two powerful winches within same short swing radius of the machine.
2.22mm hoist cables on both winches for fast and powerful hoist with less reevings.
3.U-shape boom made of imported 900 grade steel for optimized strength
4.Two oversized telescopic cylinders and oversized cable system for sturdy telescoping
5.Pin option to lock boom when first section is out for foundation jobs
6.Smart engineered box type upper structure for great strength and low center of gravity
7.Optional link-type undercarriage for smooth and safe traveling with load and long life-time
8.Life cab, excellent vision on job and machine, 20% larger interior and door entrance, easy maintenance flat windows
9.Modular design high efficient hydraulics, simple electronics and easy maintenance
10.All hydraulic functions can be accurately operated simultaneously with low engine rpm.
11.Self assembling counterweight configuration
12.Optional extendable fly jib (7-14m)
13.Optional 2m short jib for complex construction and foundation jobs.


Technical data
Items
Unit
Data
Max. rated lifting capacity
t
65t
Main boom length
m
10.8~38
Boom derricking angle
°
-3~83
Jib length
m
8/14
Angle between jib and main boom
°
0/20/40
Rope speed
m/min
0~116
Swing speed
r/min
0~1.96
Travel speed
Km/h
0~2.26
Rope diameter
mm
22
Main/aux.winch rope length
m/m
200/130
Rated single line pull
t(kN)
7.5(73.5)
Gradeability (Boom retract, cabin in rear)
%
30
Crane mass
t
60
Overall dimension (LxWxH, not including aux.winch)
mm
12500×3260×3160
Ground bearing pressure
Mpa
0.07
