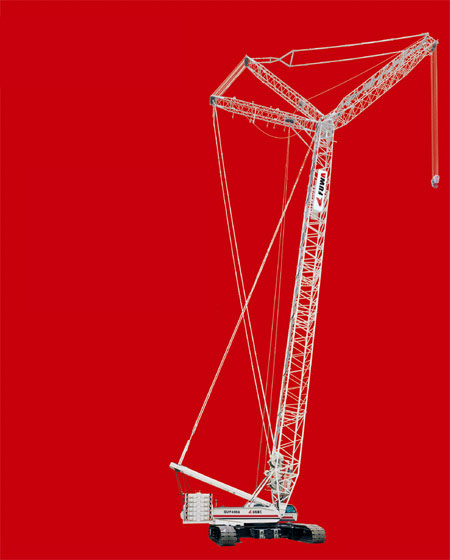

With Lattice Boom


1. Touch screen, Colorful Display, electric monitor and dummy wall, ensure the machine operate stably;
2. Large box platform structure, good looking outline, low transportation weight;
3. In accordance with Europe CE and North American Standard;
4. The unique lattice structure design makes boom weight is less, anti-rust and long service life;

Technical data

Non-Superlift Main Boom Max. Lifting Capacity (t) 400(5m working radius)
Length(m) 24~84
H/L Boom Max. Lifing Capacity (t) 180(10m working radius)
Length  (m) 42~108
Fixed Jib Max. Lifting Capacity(t) 91.5(18m working radius)
Boom Length(m) 60~84
Fixed Jib Length(m) 7
Luffing Jib Max. Lifting Capacity(t) 139.8(14m working radius)
Boom Length(m) 30~72
Luffing Jib(m) 24~72
Superlift Superlift Mast Length(m) 30
Swing Radius (m) 11、13、15
Superlift Counterweight Weight(t) 0~250
Swing Radius (m) 11,13,15
H Boom Max. Lifting Capacity (t) 400(8m working radius)
Length (m) 30~96
H/L Boom Max. Lifting Capacity (t) 139(12m working radius)
Length (m) 78~126
Luffing Jib Weight(t) 154.1(16m working radius)
Boom Length(m) 36~90
Luffing Jib Length(m) 30~90

Hook Blocks(Optional) 15/50/100/400(200×2)
Working Speed Main/Aux. Hoist Speed (m/min) 0~145
Boom Derricking Speed(m/min) (0~35)×2
Luffing Jib Derricking Speed(m/min) 0~72
Superlift Derricking Speed(m/min) 0~108
Swing Speed (r/ min) 0 ~ 1.3
Traveling Speed(km/h) 0 ~1.2 /0 ~0.4
Crane Weight(Basic Boom, 180T Counterweight, 400Ton Hook) 325Ton
Main Boom Angle (°) 30—84 Ground Bearing Pressure (MPa)(MPa) 0.136
Luffing jib angle (°) 15—72 Main Boom Angle with luffing jib (°) 66、76、86
Max. Lifting Torque
5100 (With Superlift)
Engine Model QSM11, Cummins
Power (KW) 298
Revolution(rpm) 2100
