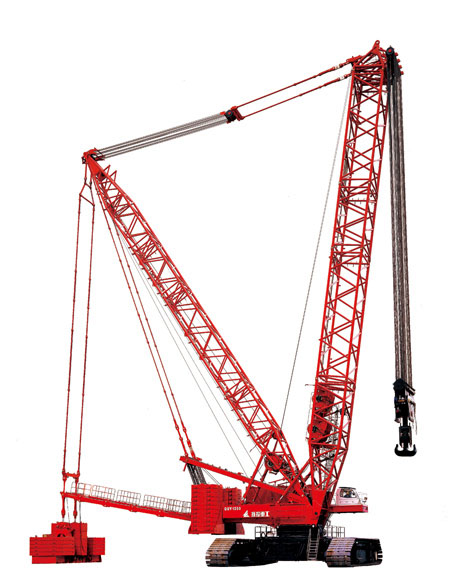

Features:
1. The whole crane adopts imported moulding high strength stay bar, and imported hydraulic components, electrical components, high strength steel tube, wire rope and pulley bearing, the excellent design and deployment makes it more safety;
2. Main system adopts close circuit, saves energy, high efficiency, good control, and the pump realizes directly control to motor; the full close hydraulic circuit drive of hoisting, derricking, swing and travelling, different circuits operate independently;
3. Driving Cylinder through pin controlled by remoter, greatlly boosts installation efficiency of crane and reduces labor strength
4. Single disassembly of winch on the platform, mast & counterweight and single outer-hang structure makes convenient to maintenance, transport and installation;
Technical data
|
Items
|
Data
|
||
| Non-Superlift | Main Boom | Max. Lifting Capacity （t） | 800（7m working radius） |
| Length（m） | 36～96 | ||
| H/L Boom | Max. Lifing Capacity （t） | 506.6（10m working radius） | |
| Length （m） | 48～114 | ||
| Luffing Jib | Max. Lifting Capacity（t） | 306（18m working radius） | |
| Boom Length（m） | 42～60 | ||
| Luffing Jib（m） | 30～96 | ||
| Superlift | Superlift Mast | Length（m） | 42 |
| Swing Radius (m) | 16.5、22.5 | ||
| Superlift Counterweight | Weight（t） | 0～450 | |
| Swing Radius （m） | 15～24 | ||
| H Boom | Max. Lifting Capacity （t） | 1250（8m working radius） | |
| Length （m） | 42～120 | ||
| H/L Boom | Max. Lifting Capacity （t） | 436.5（22m working radius） | |
| Length （m） | 102～150 | ||
| Luffing Jib | Weight（t） | 500（18m working radius） | |
| Boom Length（m） | 48～96 | ||
| Luffing Jib Length（m） | 30～108 | ||
| Hook Blocks（Optional） | 25/70/250/1250(625) | ||||
| Working Speed | Main/Aux. Hoist Speed （m/min） | 0～130 | |||
| Boom Derricking Speed（m/min） | (0～60)×2 | ||||
| Luffing Jib Derricking Speed（m/min） | 0～120 | ||||
| Superlift Derricking Speed（m/min） | 0～120 | ||||
| Swing Speed （r/ min） | 0 ～ 1.0 | ||||
| Traveling Speed（km/h） | 0 ～1.0 | ||||
| Main Boom Angle (°) | 30—85 | Ground Bearing Pressure (kg/cm2)（MPa） | 0.142 | ||
| Luffing jib angle (°) | 13—72 | Main Boom Angle with luffing jib (°) | 65-85 | ||
| Max. Lifting Torque（t·m） | 14420 (With Superlift) | ||||
| Engine | Model | QSK23, Cummins | |||
| Power （KW） | 641 | ||||
| Revolution（rpm） | 2100 | ||||
