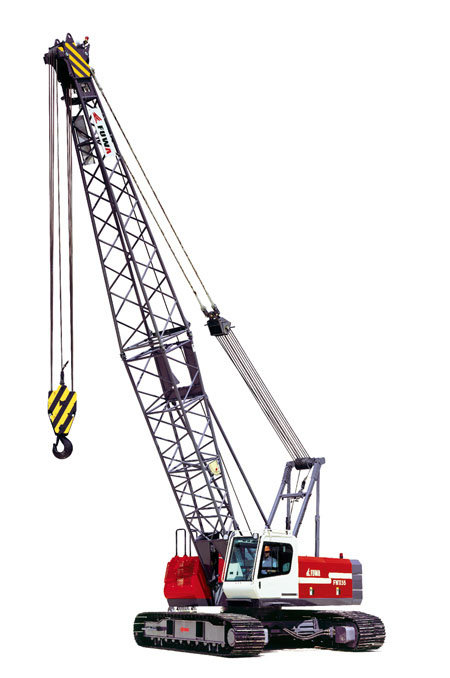

Features
1.Modular design for optimized performance and efficient maintenance by innovative layout of hydraulic and electric system.
2.Most powerful lifting capacity as result of engineered machine balance, max. lifting torque 210tm.
3.High-grade steel boom and machine structures, thoroughly engineered and analyzed.
4.Enhanced safety features combined moment limiter with machine diagnostics and solid electric compartment for fast checking and maintenance.
5.Optional link-type undercarriage for safe and smoother travel with load and extended lift-time.
6.Oversized high performance winches with 20mm wire rope with optional free fall function for special applications.
7.Multi-configuration and options to serve various markets and to meet different requirements.
8.Lift-cab; high ergonomics confort cab, 20% more vision by flat easy maintenance windows, 20% larger door entrance
Technical data
|
Items
|
Unit
|
Data
|
||
| Max. Rated Lifting Capacity |
t
|
55@3.5m
|
||
| Main Boom Length |
m
|
13-52
|
||
| Fly Jib Length |
m
|
9.15-15.25
|
||
| Main Boom + Fly Jib Max. Length |
m
|
43+15.25
|
||
| Boom derricking angle |
°
|
30-80
|
||
| Hook Blocks |
t
|
55/15/6
|
||
| Working Speed | Rope speed | Main Winch Hoist, Lower (Rope Dia.￠20mm) |
m/min
|
0-110
|
| Aux. Winch Hoist, Lower (Rope Dia.￠20mm) |
m/min
|
0-110
|
||
| Boom Hoist, lower (Rope Dia.￠16mm) |
m/min
|
0-60
|
||
| Swing Speed |
r/min
|
0-3.1
|
||
| Travel Speed |
km/h
|
0-1.33
|
||
| Reevings |
|
8
|
||
| Single Line Pull |
t
|
6.1
|
||
| Gradeability |
%
|
30
|
||
| Engine |
Kw/r/min
|
142/2000 (export)
132/1950 (domestic) |
||
| Swing Radius |
mm
|
4100
|
||
| Transport Dimension |
mm
|
12100x3300x3300
|
||
| Crane Mass (With Basic Boom, 55t hook) |
t
|
50
|
||
| Ground Bearing Pressure |
Mpa
|
0.07
|
||
| Counterweight |
t
|
16+2
|
||
