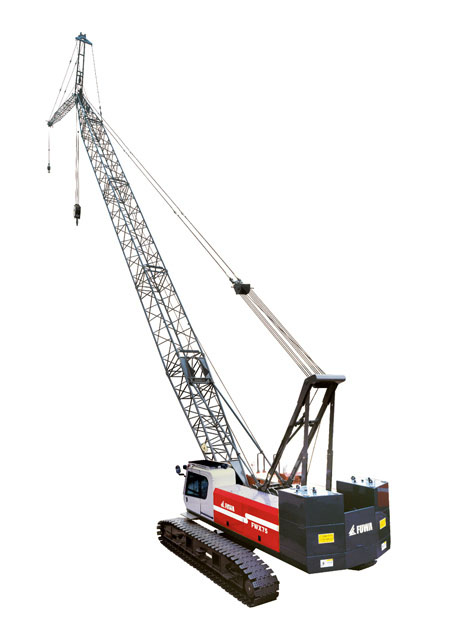

With Lattice Boom

FWX75


Features
1.Modular design for optimized performance and efficient maintenance by innovative layout of hydraulic and electric system.
2.Most powerful lifting capacity as result of engineered machine balance, max. lifting torque 280tm.
3.High-grade steel boom and machine structures, thoroughly engineered and analyzed.
4.Enhanced safety features combined moment limiter with machine diagnostics and solid electric compartment for fast checking and maintenance.
5.Optional link-type undercarriage for safe and smoother travel with load and extended lift-time.
6.Oversized high performance winches with 22mm wire rope with optional free fall function for special applications.
7.Multi-configuration and options to serve various markets and to meet different requirements.
8.Lift-cab; high ergonomics confort cab, 20% more vision by flat easy maintenance windows, 20% larger door entrance

Technical data

Items
Unit
Data
Max. Rated Lifting Capacity
t
75@3.55m
Main Boom Length
m
13-58
Fly Jib Length
m
9-18
Main Boom + Fly Jib Max. Length
m
46+18
Boom derricking angle
°
30-80
Hook Blocks
t
75/25/9
Working Speed Rope speed Main Winch Hoist, Lower (Rope Dia.¢22mm)
m/min
0-110
Aux. Winch Hoist, Lower (Rope Dia.¢22mm)
m/min
0-110
Boom Hoist, lower (Rope Dia.¢18mm)
m/min
0-60
Swing Speed
r/min
0-3.1
Travel Speed
km/h
0-1.33
Reevings
11
Single Line Pull
t
7
Gradeability
%
30
Engine
Kw/r/min
200/2200 (export)
194/2200 (domestic)
Swing Radius
mm
4356
Transport Dimension
mm
12990x3260x3250
Crane Mass (With Basic Boom, 55t hook)
t
66
Ground Bearing Pressure
Mpa
0.079
Counterweight
t
24
